MacBook Pro (Retina)
Family: MacBook Pro
Gestalt ID: 406
Minimum OS: 10.7.4
Maximum OS: 10.8.2
Introduced: June 2012
CPU: Intel Core i7 Mobile ("Ivy Bridge")
CPU Speed: 2.3/2.6 GHz (2.7 GHz BTO)
CPU Cores: 4
Bus Speed: 5 GT/s (DMI)
Register Width: 64-bit
Data Bus Width: 64-bit
Address Bus Width: 64-bit
RAM Type: PC3-12800 DDR3L SO-DIMM
Minimum RAM Speed: 1600 MHz
Onboard RAM: 0 MB
RAM slots: 2
Maximum RAM: 16 GB
Level 1 Cache: 32 kB data, 32 kB instruction
Level 2 Cache: 256 kB per-core (1 MB total)
Level 3 Cache: 6 MB on-processor
Expansion Slots: SDXC card
Screen: 15.4" LED-backlit TFT
GPU: NVIDIA GeForce GT 650M, Intel HD Graphics 4000
VRAM: 1 GB GDDR, 384 MB shared (see notes)
Max Resolution: 2880x1800 ("retina")
Video Out: HDMI
Camera: 720p FaceTime HD
Flash Drive: 256/512 GB (768 GB BTO)
ATA Bus: Serial-ATA
USB: 2 3.0
Firewire800: via adaptor
Audio Out: stereo 24 bit mini, Optical S/PDIF
Audio In: stereo 24 bit mini (see notes)
Microphone: dual mono
Ethernet: via adaptor
Airport Extreme: 802.11n (3-stream)
Power: 85 Watts
Battery Life: 7 hours (30 day standby)
Dimensions: 0.71" H x 14.13" W x 9.73" D
Weight: 4.46 lbs.
The MacBook Pro's second graphics chipset used a portion of main memory as VRAM. Though reported as a 384 MB graphics system, this was actually a minimum. Actual usage varied with graphics load, resulting in slightly less RAM available for system use. A single 3.5mm jack could be used for analog or optical audio out, or analog audio in.

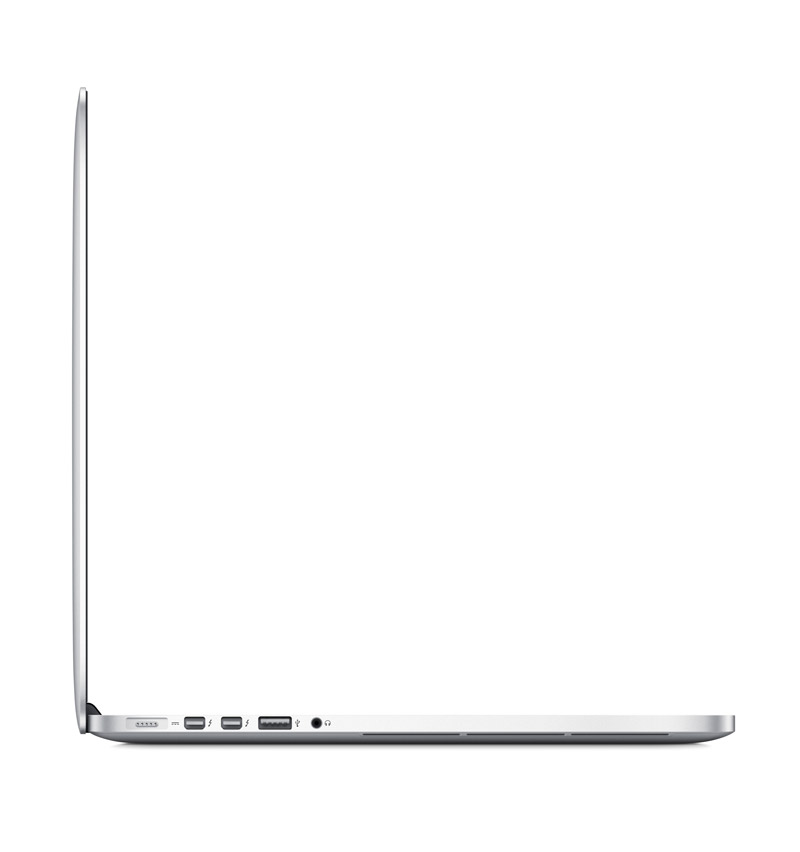

Introduced in June 2012, the MacBook Pro (Retina) was the first redesign of Apple's 15-inch laptop in nearly four years, and was billed as a marriage of the streamlined design of the MacBook Air with the power of a MacBook Pro. Indeed, the MacBook Pro (Retina) compared favorably in nearly every specification to its full-size contemporary, the MacBook Pro (15-inch, Mid 2012). It had the same "Ivy Bridge" Core i7 processors, the same high-performance graphics chipsets, more expandable RAM (up to 16 GB, the highest of any Apple laptop yet), a faster solid-state hard drive, and 3-stream WiFi, all housed in a newly designed unibody aluminum case, which was 25% thinner and 19% lighter.
The most dramatic new feature of the MacBook Pro (Retina) was its stunning Hi-DPI "retina" display, which Apple claimed moved beyond human perception of individual pixels at standard viewing distance. As with the iPhone 4 and iPad (Retina), Apple chose to precisely double the resolution to allow a reasonably smooth transition to High-DPI; all text and standard UI widgets were automatically rendered at higher resolution, and applications that had not yet been converted would simply be pixel-doubled (It was also possible to configure the screen to serve as an actual 2880x1800 screen).
As notable as what Apple was able to include in the MacBook Pro (Retina) was what they chose not to: missing were an optical drive (an external USB "SuperDrive" was available), ethernet or firewire ports (replaced with optional external thunderbolt adaptors), or a dedicated audio input. As with the choice to omit a floppy drive or traditional serial ports in the original iMac, these were controversial moves, but Apple made defensible arguments for each choice. For several years (since the introduction of the MacBook Air, which also had no optical drive), Apple had been moving to App Store-based delivery off all software, and iTunes-based delivery of media, deemphasizing optical media at every opportunity. With the removal of FireWire, included in some form on Apple laptops for more than a decade, Apple made clear that Thunderbolt would be their single high-speed I/O standard for the foreseeable future.
The MacBook Pro (Retina) was sold in two configurations, both with 8 GB of RAM and 1 GB of VRAM:
- 2.3 GHz quad-core Intel Core i7, 256 GB SSD, $2199
- 2.6 GHz quad-core Intel Core i7, 512 GB SSD, $2199
BTO options included a faster 2.7 GHz processor, up to 16 GB of RAM, and a 768 GB SSD.
