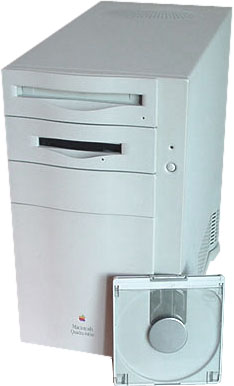

Macintosh Quadra 840av


Family: Macintosh Quadra

Codename: Quadra 1000, Cyclone

Gestalt ID: 78

Minimum OS: 7.1

Maximum OS: 8.1

Introduced: July 1993

Terminated: July 1994


CPU: Motorola MC68040

CPU Speed: 40 MHz

FPU: integrated

Bus Speed: 40 MHz

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

Level 1 Cache: 4 kB data, 4 kB instruction


RAM Type: 72 pin SIMM

Minimum RAM Speed: 70 ns

Onboard RAM: 0 MB

RAM slots: 4

Maximum RAM: 128 MB

Expansion Slots: 3 NuBus


VRAM: 1-2 MB (4 sockets)

Max Resolution: 1152x870

Video Out: DB-15, s-video, composite

Video In: s-video, composite


Hard Drive: 230 MB-1.0 GB

Floppy Drive: 1.4 MB SuperDrive

Optical Drive: 2x CD-ROM


ADB: 1

Serial: 2 Mini DIN-8


Audio Out: stereo 16 bit mini

Audio In: stereo 16 bit mini

Speaker: mono

Microphone: mono


Ethernet: AAUI-15


Power: 200 Watts

Dimensions: 14" H x 7.7" W x 15.75" D

Weight: 25.3 lbs.

The Quadra 840av was the first 68040 Mac to break the 33 MHz barrier. Based on the 40 MHz 68040 processor, and housed in a Quadra 800-style case, the 840av included AV features similar to its younger sibling, the 660av. However, it's AT&T 3210 DSP ran at a faster 66 MHz. It also included one Geoport, and sold for $3,550, which was inexpensive for what was, at the time, the fastest Mac ever.
