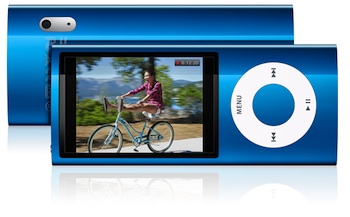

iPod nano (5th Generation)


Family: iPod

Codename: ?

Minimum OS: iPod nano 5G OS 1.0

Maximum OS: iPod nano 5G OS 1.0.2

Introduced: September 2009

Terminated: September 2010


CPU: Samsung ARM

CPU Speed: ?

FPU: none

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 32 MB

Onboard RAM: 64 MB

Maximum RAM: 64 MB


Screen: 2.2" TFT

Max Resolution: 16-bit 240x376

Video Out: composite, component (via Dock Connector)

Camera: VGA (video only)


Flash Drive: 8/16 GB


USB: via Dock Connector

Audio Out: stereo 16 bit mini

Speaker: clicker


Battery Life: Up to 24 hours of music playback; up to 5 hours of video playback

Dimensions: 3.6" H x 1.5" W x 0.24" D

Weight: 0.08 lbs.

Introduced in September 2009, the iPod nano (5th Generation) improved on the iPod nano (4th Generation) not by increasing capacity, but by adding a variety of new features. These included an integrated video camera capable of recording 30 fps 640x480 H.264 video, an FM radio with the ability to pause for up to 15 minutes, a pedometer, and the VoiceOver feature introduced in the iPod shuffle (3rd Generation). The iPod nano (5th Generation) was available in the nine colors, in capacities of 8 and 16 GB, for $149 and $179, respectively.
