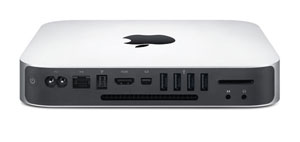

Mac mini Server (Mid 2010)


Family: Servers

Codename: ?

Gestalt ID: 406

Minimum OS: 10.6.4

Maximum OS: 10.10.4

Introduced: June 2010

Terminated: July 2011


CPU: Intel Mobile Core 2 Duo (P7xxx/P8xxx)

CPU Speed: 2.66 GHz

CPU Cores: 2

FPU: integrated

Bus Speed: 1066 MHz

Register Width: 64-bit

Data Bus Width: 64-bit

Address Bus Width: 64-bit

Level 1 Cache: 32 kB data, 32 kB instruction

Level 2 Cache: 3 MB on-processor


RAM Type: PC3-8500 DDR3 SDRAM

Minimum RAM Speed: 1066 MHz

Onboard RAM: 0 MB

RAM slots: 2

Maximum RAM: 8 GB

Expansion Slots: SDXC card


GPU: NVIDIA GeForce 320M

VRAM: 256 MB shared (see notes)

Max Resolution: 1920x1200 via HDMI, 2560x1600 via Mini Displayport

Video Out: HDMI, Mini DisplayPort


Hard Drive: 2x 500GB 5400 RPM

ATA Bus: Serial ATA


USB: 4 (2.0)

Firewire800: 1

Audio Out: stereo 24 bit mini, Optical S/PDIF, HDMI, HDMI via Mini DisplayPort

Audio In: stereo 24 bit mini, Optical S/PDIF

Speaker: mono


Ethernet: 10/100/1000Base-T

Wi-Fi: 802.11a/b/g/n

Bluetooth: 4.0


Power: 85 Watts

Dimensions: 1.4" H x 7.7" W x 7.7" D

Weight: 3.0 lbs.


The Mac mini's graphics chipset used a portion of main memory as VRAM. Though reported as a 256 MB graphics system, this was actually a minimum. Actual usage varied with graphics load, resulting in slightly less RAM available for system use.

Introduced in June 2010, the Mac mini Server (Mid 2010) came with an unlimited license for Max OS X Server Snow Leopard. It was housed in the same case size and shape as its contemporary Mac mini Mac mini (Mid 2010), but without an optical drive, which was removed to accommodate a second hard drive. It shipped in a single configuration, with a 2.66 GHz Dual-core processor, 4 GB of RAM, and two 500 GB hard drives, for $999.
