iPod nano (3rd Generation)


Family: iPod

Codename: ?

Minimum OS: iPod nano 3G OS 1.0

Maximum OS: iPod nano 3G OS 1.1.3

Introduced: September 2007

Terminated: August 2008


CPU: Samsung ARM

CPU Speed: ?

FPU: none

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 32 MB

Onboard RAM: 64 MB

Maximum RAM: 64 MB


Screen: 2" backlit LCD

Max Resolution: 16-bit 320x240

Video Out: composite, component (via Dock Connector)


Flash Drive: 4/8 GB


USB: via Dock Connector

Audio Out: stereo 16 bit mini

Speaker: clicker


Battery Life: Up to 24 hours of music playback; up to 5 hours of video playback

Dimensions: 2.75" H x 2.06" W x 0.26" D

Weight: 0.10 lbs.

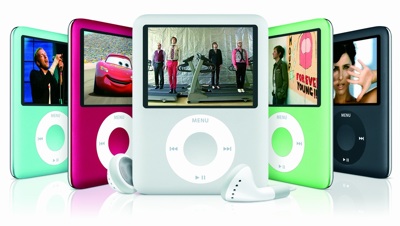

Introduced in September 2007, the iPod nano (3rd Generation) was a radical departure in form factor from the previous model. In order to accommodate a screen large enough to allow reasonable display of video, it was shorter and wider than any previous iPod nano, for which it garnered the nickname "fat boy." The iPod (3rd Generation) used the same new-look OS as the simultaneously-released iPod classic, and was available in two capacities: the 4 GB model was available in silver only for $149. The 8 GB model, available in silver, black, blue, green and a (PRODUCT) RED special edition, sold for $199. In January 2008, a pink 8 GB model was added.
