iPod nano (2nd Generation)


Family: iPod

Codename: ?

Minimum OS: iPod nano 2G OS 1.0

Maximum OS: iPod nano 2G OS 1.1.3

Introduced: September 2006



CPU Speed: dual 80 MHz embedded (?)

FPU: none

Register Width: 32-bit

Data Bus Width: 32-bit

Address Bus Width: 32-bit

ROM: 32 MB (?)

Onboard RAM: 32 MB (?)

Maximum RAM: 32 MB (?)


Screen: 1.5" backlit LCD

Max Resolution: 16-bit 176 x 132


Flash Drive: 2/4/8 GB


USB: via Dock Connector

Audio Out: stereo 16 bit mini

Speaker: clicker


Dimensions: 3.5" H x 1.6" W x 0.26" D

Weight: .088 lbs.

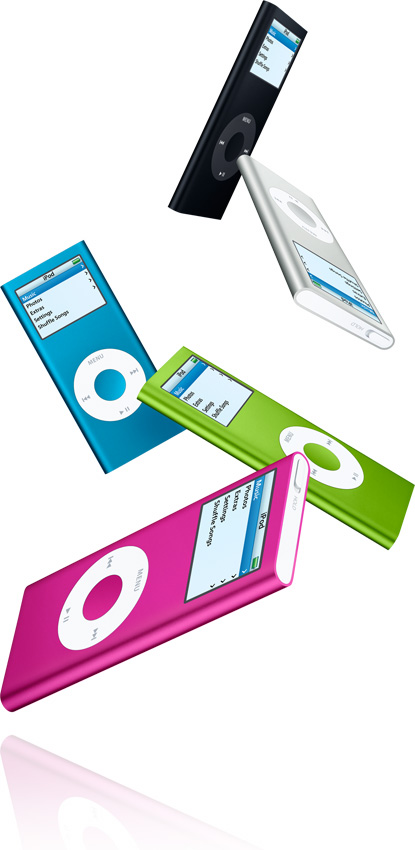

Announced in September 2006, the iPod nano (2nd Generation) revived the color options previously available only for the discontinued iPod mini. Apart from a redesigned case and increased capacity, the iPod nano (2nd Generation) was similar to the previous iPod nano. It was available in three configurations. The low-end model, with 2 GB of storage, was available in silver and sold for $149. A 4 GB model, available in silver, blue, green, or pink for $199. Finally, the high-end 8GB model, available only in black, was $249. (PRODUCT) RED versions of the 4 GB and 8 GB model were made available in October and November 2006, respectively.
