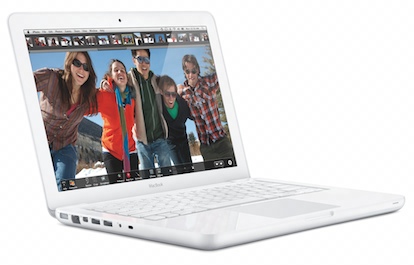

MacBook (Mid 2010)


Family: MacBook

Codename: ?

Gestalt ID: 406

Minimum OS: 10.6.3

Maximum OS: 10.10.4

Introduced: May 2010


CPU: Intel Mobile Core 2 Duo (P7xxx/P8xxx)

CPU Speed: 2.4 GHz

CPU Cores: 2

FPU: integrated

Bus Speed: 1066 MHz

Register Width: 64-bit

Data Bus Width: 64-bit

Address Bus Width: 64-bit

Level 1 Cache: 32 kB data, 32 kB instruction

Level 2 Cache: 3 MB on-processor


RAM Type: PC3-8500 SO-DIMM

Minimum RAM Speed: 1066 MHz

Onboard RAM: 0 MB

RAM slots: 2

Maximum RAM: 4 GB


Screen: 13.3" LED-backlit TFT

GPU: NVIDIA GeForce 320M

VRAM: 256 MB shared (see notes)

Max Resolution: 1280x800

Video Out: mini DisplayPort

Camera: iSight


Hard Drive: 250 GB 5400 RPM (320 GB, 500 GB BTO)

ATA Bus: Serial-ATA

Optical Drive: 24x/24x/10x/8x/8x/4x/4x CD-RW/DVD±RW/DVD±R DL


USB: 2 2.0

Audio Out: stereo 24 bit mini, Optical S/PDIF, HDMI via Mini DisplayPort

Audio In: stereo 24 bit mini (see notes)

Speaker: stereo

Microphone: mono


Ethernet: 10/100/1000BaseT

Wi-Fi: 802.11a/b/g/n

Bluetooth: 2.1+EDR


Power: 60 Watts

Dimensions: 1.08" H x 13" W x 9.12" D

Weight: 4.7 lbs.


The MacBook's graphics chipset used a portion of main memory as VRAM. Though reported as a 256 MB graphics system, the chipset actually used up to 272 MB of RAM. A single 3.5mm jack could be used for analog or optical audio out, or analog audio in.

Introduced quietly in May 2010, the MacBook (Mid 2010) replaced the MacBook (Late 2009). Improvements included a faster processor and graphics chipset. The MacBook (Mid 2010) sold in a single $999 configuration, with 2 GB of RAM. Built-to-order options included 4 GB of RAM, and a 320 or 500 GB 5400 rpm hard drive.
